Description
BD Diesel 1030606-DS-12 – Xtrude Transmission Cooler with Fan Double Stacked Complete Kit 1/2in Lines (Dodge/Ford)
HOT transmission oil has to be Cooled to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350 percent temperature drop versus the factory system – 36 percent better temperature drop than BD’s standard single core kit.
The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure.

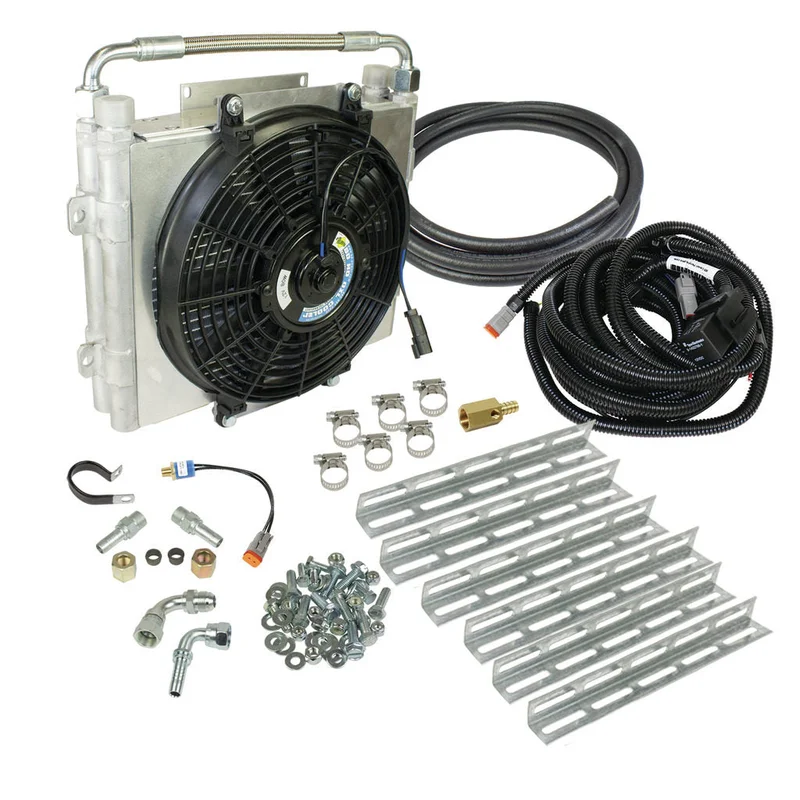

The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation – no wasting time fabricating brackets out of scrap metal.
The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Details:
- Series: Xtrude
- Ems Code: 4
- Engine Years: Universal
- Installation Time: 3.5 Hours
- Fits: 1994-2008 Dodge Ram 2500/3500 2003-20010 Ford F-250/F-350 Super Duty
- Shipping Restriction: This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states
- Sold As: Kit
- Warranty: 12-Months/24,000 Miles
