BDS Suspension BDS1572FPE Suspension Lift Kit

Description

BDS Suspension BDS1572FPE Suspension Lift Kit

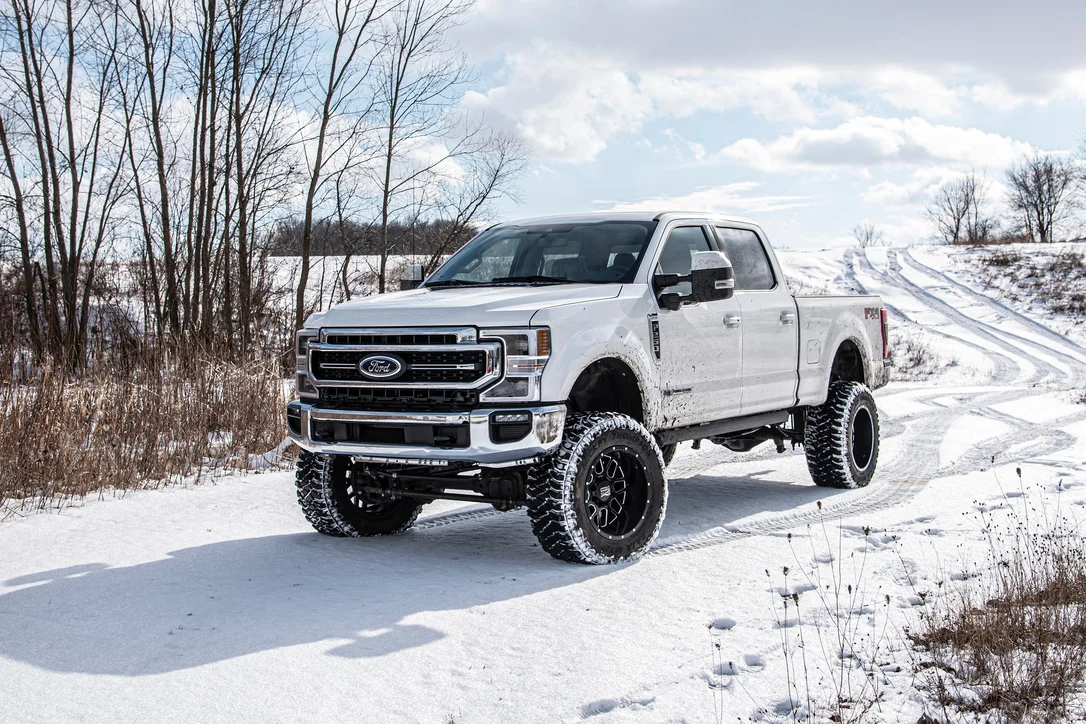

Raise the bar on your Ford Super Duty diesel truck with this 7-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38″ tires.

r

Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

r

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

r

4-Link Conversion

r

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

r

FOX Performance Elite Coil-Over

r

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

T-Case Inde

• r
  • FOX 2.5 Coil-Over mounts in factory coil bucket location

  r

  • Adds additional secondary FOX 2.0 shock for max performance

  r

  • Eibach coil springs ride smooth through the roughest terrain

  r

  • Heavy duty 4-Link control

  Front Lift Height: 7Front Lift Method: Coil OverInstallation Difficulty: difficultInstallation Time: 6-8 HrsInstallation Tools: 30mm socket-Torque Wrench-puller pitmanArmRear Lift Height: 6Rear Lift Method: Leaf SpringRear Lift Option: Leaf SpringsShocks Included: Yes
