Bilstein 24-186520 – M 7100 Classic Coilover – 5.90in Stroke/Travel Length

Description

Bilstein 24-186520 – M 7100 Classic Coilover – 5.90in Stroke/Travel Length

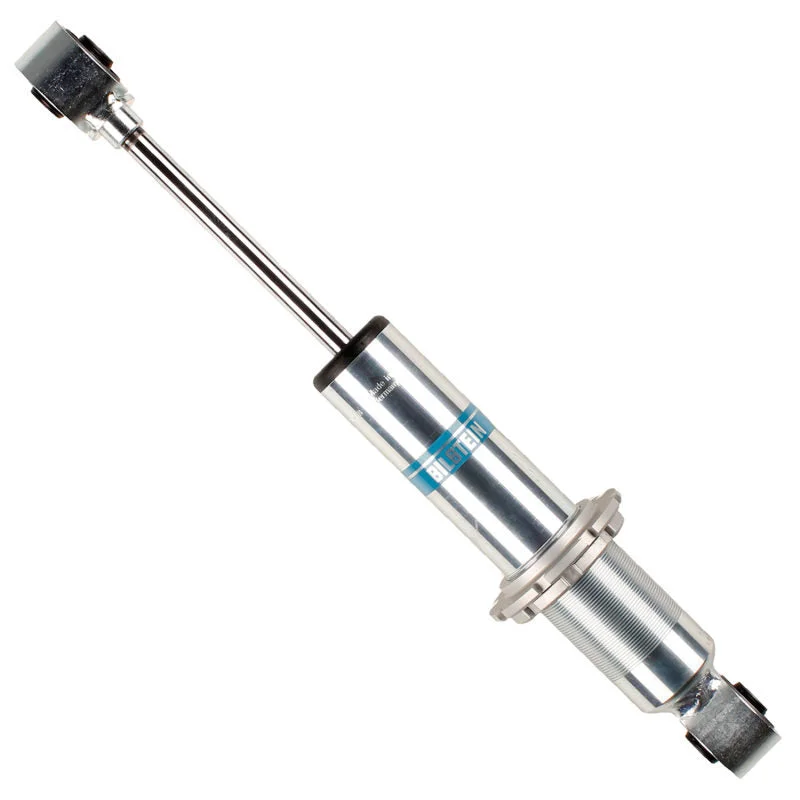

M 7100 Classic (Coilover) – Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body.Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware.For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Collapsed Length (IN): 12.34Spring Seat Included: LowerMount Type: Eye-to-EyeOptional Reservoir Clamp: N/AInternal Design: MonotubePartType: Shocks / StrutsBody Design: Threaded Body (Coilover)Extended Length (MM): 463.0Upper Mount Type: Eye 14.2mmSeries: M 7100 Classic (Coilover)Stroke/Travel Length (IN): 5.90Collapsed Length (MM): 313.5Stroke/Travel Length (mm): 149.9Rebound @0.52m/s: 3030Reservoir: NoFinish: Zinc PlatedLower Mount Type: Eye 14.2mmCompression @0.52m/s: 965Segment: MotorsportsPiston Diameter: 46mmShaft Diameter (mm): 14.0Extended Length (IN): 18.22Spring Hardware: Single Rate (2.5in)
