Description

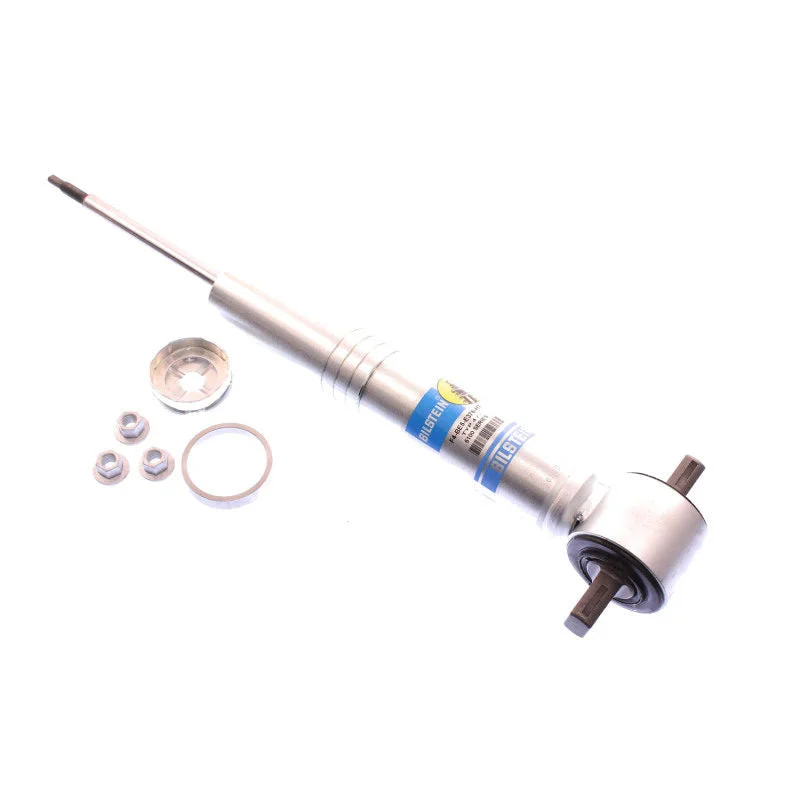

Bilstein 24-186940 – 5100 Series 2012 GMC Sierra 1500 XFE Front 46mm Monotube Shock Absorber
Shock – 5100 Series – Monotube – Steel – Zinc Plated – Front – GM Fullsize SUV / Truck 2007-12 – Each
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Piston Diameter: 46mmSegment: Light TruckExtended Length (IN): 18.48Collapsed Length (IN): 12.95Spring Seat Included: No – Reuse OEMAdjustable Damping: Non-AdjustableInternal Design: MonotubePartType: Shocks / StrutsBody Design: Snap Ring Grooved Body (Coilover)Extended Length (MM): 469.3Upper Mount Type: StemSeries: B8 5100 (Ride Height Adjustable)Stroke/Travel Length (IN): 5.53Collapsed Length (MM): 329.0Stroke/Travel Length (mm): 140.5Reservoir: NoBoot Included: NoFinish: Zinc PlatedLower Mount Type: Bar PinShaft Diameter: 14mm
