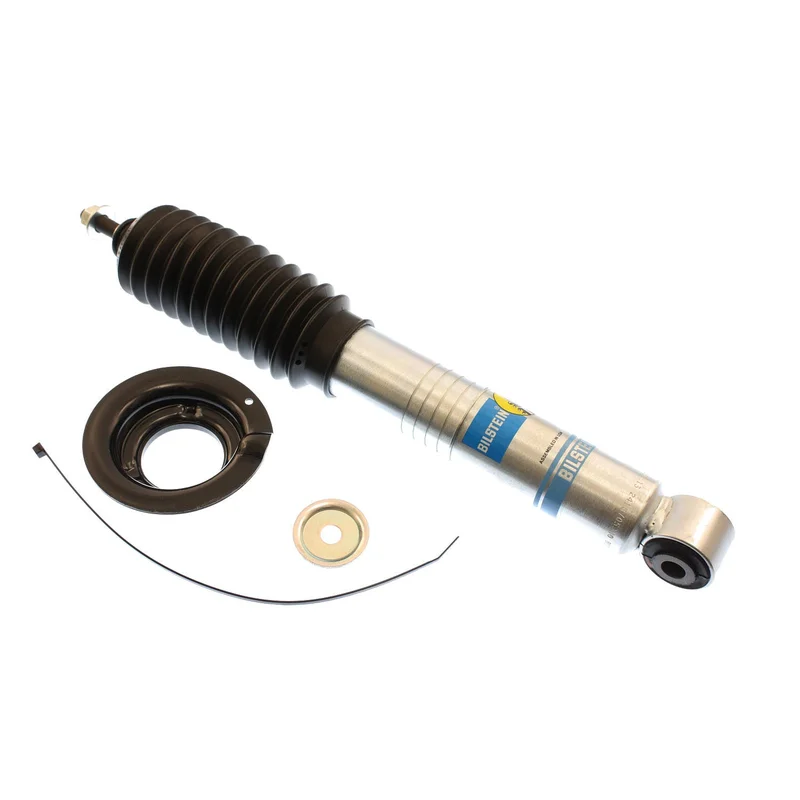

Bilstein 24-187053 – 5100 Series 2012 Suzuki Equator Sport Front 46mm Monotube Shock Absorber

Description

Bilstein 24-187053 – 5100 Series 2012 Suzuki Equator Sport Front 46mm Monotube Shock Absorber

B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75in of lift, depending on the application

Collapsed Length (IN): 10.55Spring Seat Included: YesAdjustable Damping: Non-AdjustableInternal Design: MonotubePartType: Shocks / StrutsBody Design: Snap Ring Grooved Body (Coilover)Extended Length (MM): 387.5Upper Mount Type: StemSeries: B8 5100 (Ride Height Adjustable)Stroke/Travel Length (IN): 4.71Collapsed Length (MM): 268.0Stroke/Travel Length (mm): 119.6Reservoir: NoBoot Included: Black BellowsFinish: Zinc PlatedLower Mount Type: Eye 14mmShaft Diameter: 14mmPiston Diameter: 46mmSegment: Light TruckExtended Length (IN): 15.26
