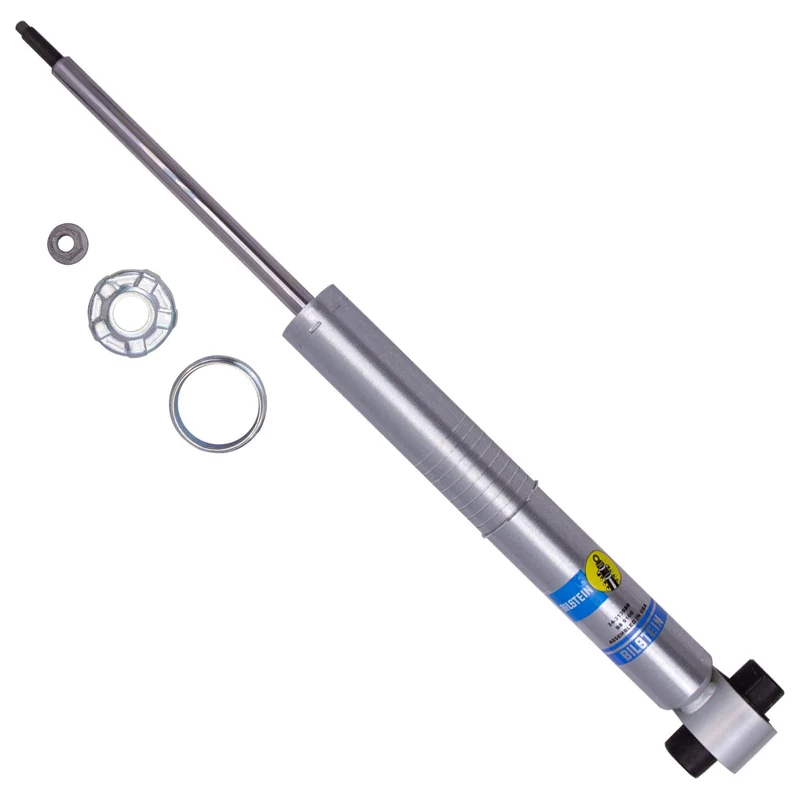

Bilstein 24-313988 – 5100 Series 2021+ Ford Bronco 4 door Rear 46mm Monotube Shock Absorber

Description

Bilstein 24-313988 – 5100 Series 2021+ Ford Bronco 4 door Rear 46mm Monotube Shock Absorber

B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75in of lift, depending on the application

Collapsed Length (IN): 17.11Spring Seat Included: No – Reuse OEMAdjustable Damping: Non-AdjustableInternal Design: MonotubeBody Design: Snap Ring Grooved Body (Coilover)Extended Length (MM): 649.3PartType: Shocks / StrutsUpper Mount Type: StemSeries: B8 5100 (Ride Height Adjustable)Stroke/Travel Length (IN): 8.45Stroke/Travel Length (mm): 214.6Collapsed Length (MM): 434.6Reservoir: NoBoot Included: NoLower Mount Type: Eye 20.2mmShaft Diameter: 18mmFinish: Zinc PlatedPiston Diameter: 46mmSegment: Light TruckExtended Length (IN): 25.56
