Description

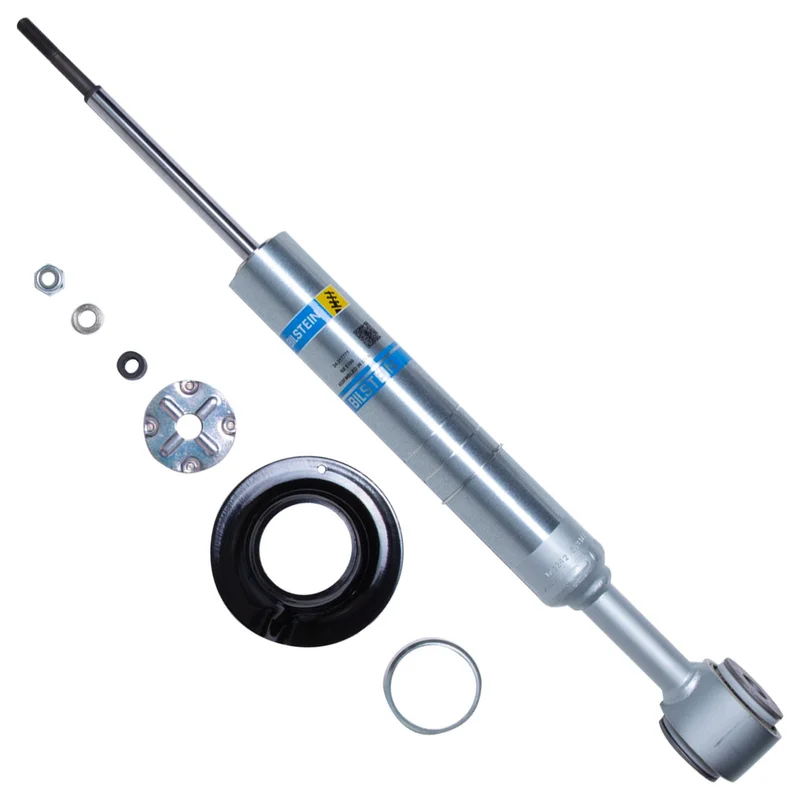

Bilstein 24-317771 – 5100 Series 04-08 Ford F-150/06-08 Lincoln Mark LT Front Shock Absorber
B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Collapsed Length (IN): 16.34Spring Seat Included: YesAdjustable Damping: Non-AdjustableInternal Design: MonotubeBody Design: Snap Ring Grooved Body (Coilover)Extended Length (MM): 556.7PartType: Shocks / StrutsUpper Mount Type: StemSeries: B8 5100 (Ride Height Adjustable)Stroke/Travel Length (IN): 5.58Stroke/Travel Length (mm): 141.7Collapsed Length (MM): 415.0Reservoir: NoBoot Included: NoLower Mount Type: Eye 20.3mmShaft Diameter: 14mmFinish: Zinc PlatedPiston Diameter: 46mmExtended Length (IN): 21.92Segment: Light Truck
