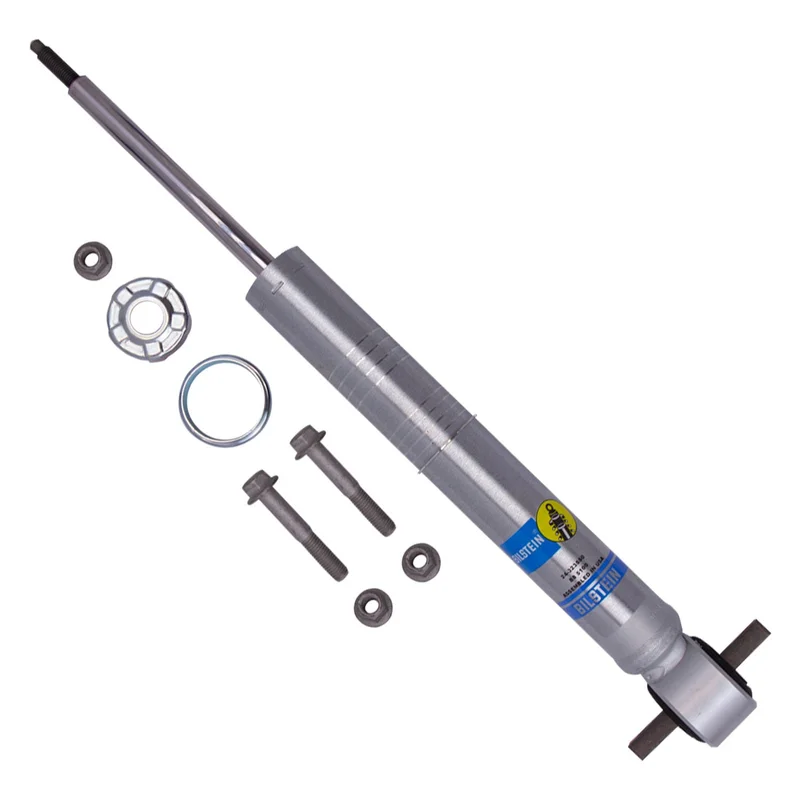

Bilstein 24-323550 – 21-22 Ford Bronco 2 Door B8 5100 (Ride Height Adjustable) Monotube Shock Absorber – Front
B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Collapsed Length (IN): 16.62Spring Seat Included: No – Reuse OEMAdjustable Damping: Non-AdjustableInternal Design: MonotubeBody Design: Snap Ring Grooved Body (Coilover)Extended Length (MM): 579.2PartType: Shocks / StrutsUpper Mount Type: StemSeries: B8 5100 (Ride Height Adjustable)Stroke/Travel Length (IN): 6.17Stroke/Travel Length (mm): 156.7Collapsed Length (MM): 422.2Reservoir: NoBoot Included: NoLower Mount Type: CrossbarShaft Diameter: 18mmFinish: Zinc PlatedPiston Diameter: 46mmSegment: Light TruckExtended Length (IN): 22.80
