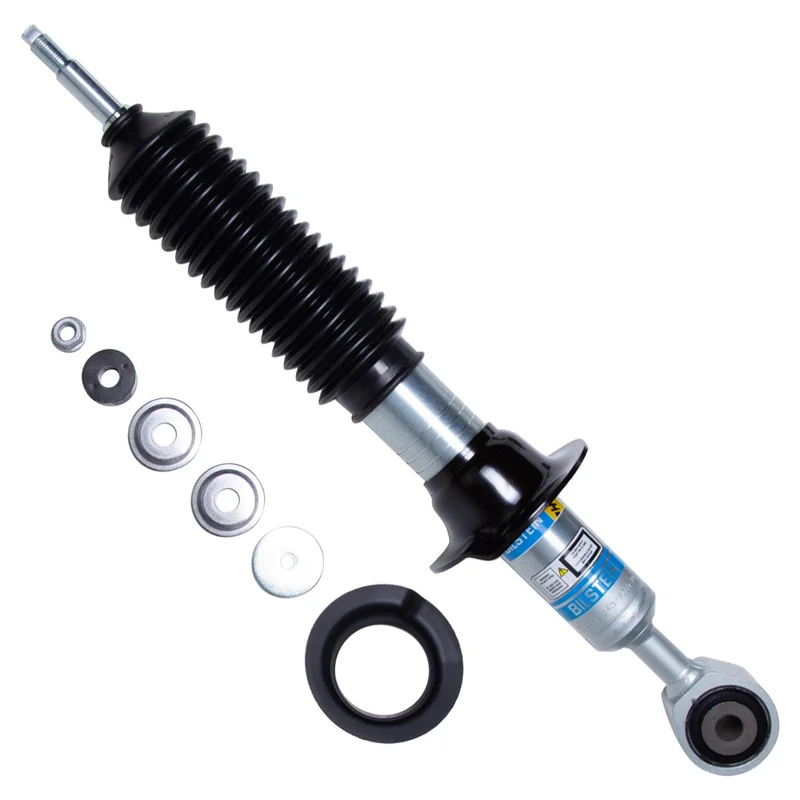

Bilstein 24-329200 – 22-24 Toyota Tundra Front B8 5100 Shock
B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Collapsed Length (IN): 15.91Spring Seat Included: YesAdjustable Damping: Non-AdjustableInternal Design: MonotubeBody Design: Snap Ring Grooved Body (Coilover)Extended Length (MM): 513.5PartType: Shocks / StrutsUpper Mount Type: StemSeries: B8 5100 (Ride Height Adjustable)Stroke/Travel Length (IN): 4.31Stroke/Travel Length (mm): 109.5Collapsed Length (MM): 404.0Reservoir: NoBoot Included: Black BellowsLower Mount Type: Eye 16.2mmFinish: Zinc PlatedPiston Diameter: 46mmShaft Diameter: 14mmSegment: Light TruckExtended Length (IN): 20.22
