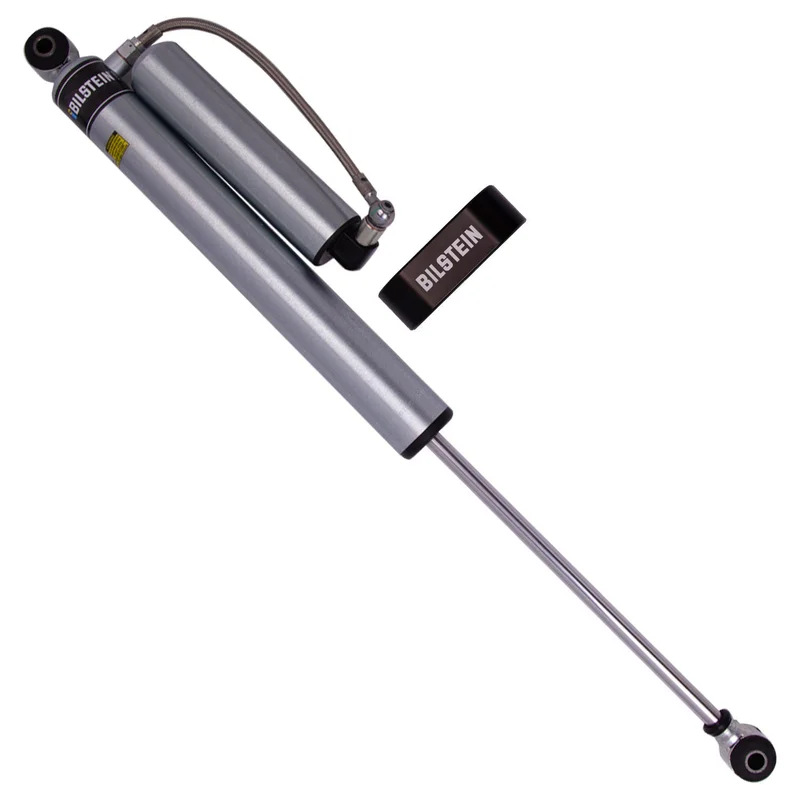

Bilstein 25-311372 – 5160 Series 15-22 Ford F-150 4WD (0-2in Lift) Rear Shock Absorber

Description

Bilstein 25-311372 – 5160 Series 15-22 Ford F-150 4WD (0-2in Lift) Rear Shock Absorber

B8 5160 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Collapsed Length (IN): 17.52Adjustable Damping: Non-AdjustableSpring Seat Included: NoBillet Reservoir Clamp Included: YesInternal Design: MonotubeBody Design: Smooth Body (Non-Coilover)PartType: Shocks / StrutsExtended Length (MM): 749.2Upper Mount Type: Eye 12mmSeries: B8 5160Stroke/Travel Length (IN): 11.98Stroke/Travel Length (mm): 304.3Collapsed Length (MM): 445.0Reservoir: YesBoot Included: NoFinish: Zinc PlatedPiston Diameter: 46mmShaft Diameter: 14mmLower Mount Type: Eye 12mmSegment: Light TruckExtended Length (IN): 29.50
