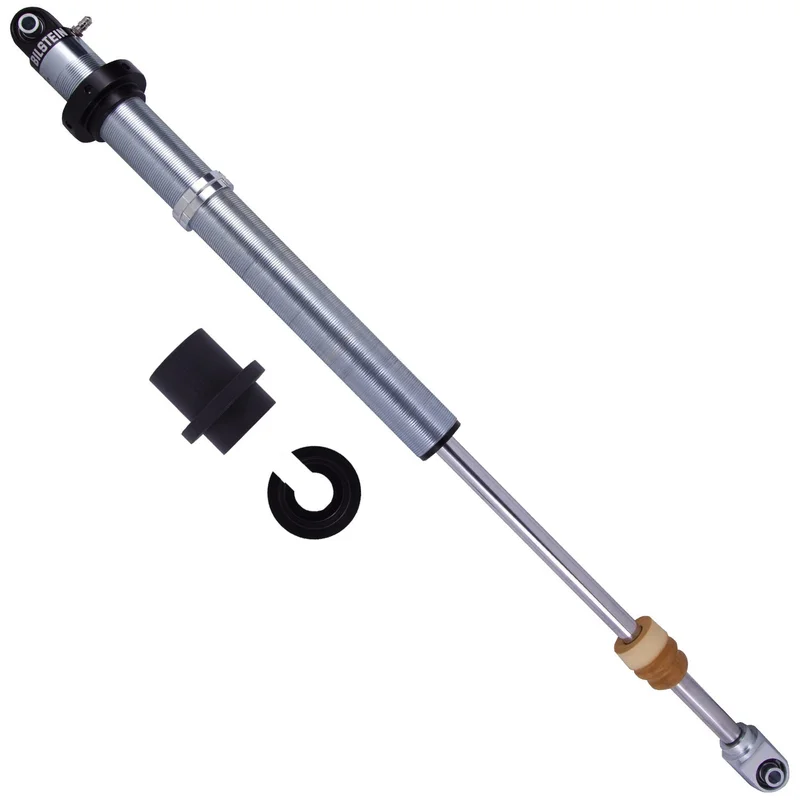

Bilstein 33-243566 – 46mm Coil-Carrier 16in M 9200 Series Shock Absorber
M 9200 (Coil Carrier) – Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs.This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height.These coil carriers are sold by length and are for custom applications.M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
- 46mm monotube design
- Designed to hold the coils in place
- To be used in conjunction with Bypass shocks
Mount Type: Eye-to-EyeOptional Reservoir Clamp: N/AUpper Mount Type: Eye .5×1.5inPartType: Shocks / StrutsSeries: M 9200 (Coil Carrier)Stroke/Travel Length (IN): 16.00Stroke/Travel Length (mm): 406.4Collapsed Length (MM): 596.9Rebound @0.52m/s: Coil Carrier No ValvingExtended Length (MM): 1003.3Body Design: Threaded Body (Coilover)Internal Design: MonotubeCollapsed Length (IN): 23.50Spring Seat Included: NoReservoir: YesBoot Included: N/ACompression @0.52m/s: Coil Carrier No ValvingFinish: Zinc PlatedPiston Diameter: 46mmLower Mount Type: Eye .5×1.5inShaft Diameter (mm): 22.0Segment: MotorsportsExtended Length (IN): 39.50
