Description

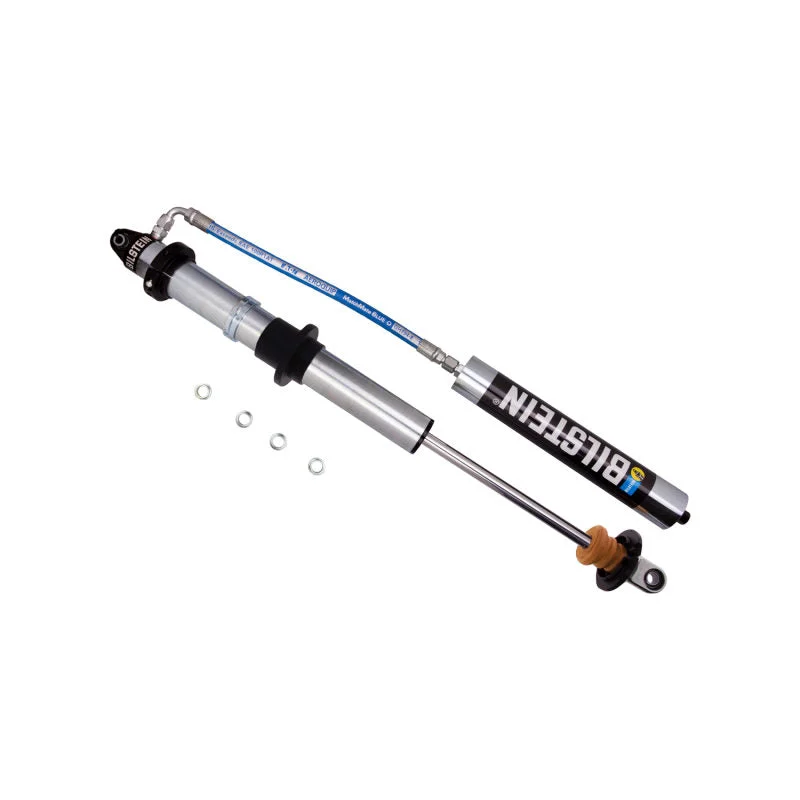

Bilstein 33-244501 – M 9200 (Coilover) 60mm Shock Absorber
M 9200 (Coilover) – Suspension Shock Absorber
60mm Monotube Shock Absorber
Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
- Available in 46mm and 60mm monotubes
- Threaded body with dual-rate coilover hardware
- Multiple stroke lengths available ranging from 8″ to 16″
Mount Type: Eye-to-EyeOptional Reservoir Clamp: N/ASpring Seat Included: NoCollapsed Length (IN): 26.50Internal Design: MonotubeBody Design: Threaded Body (Coilover)Extended Length (MM): 1079.5Upper Mount Type: Eye .5×1.5inPartType: Shocks / StrutsSeries: M 9200 (Coilover)Stroke/Travel Length (IN): 16.00Stroke/Travel Length (mm): 406.4Collapsed Length (MM): 673.1Rebound @0.52m/s: 2550Reservoir: YesBoot Included: N/ACompression @0.52m/s: 1000Finish: Zinc PlatedPiston Diameter: 60mmLower Mount Type: Eye .5×1.5inShaft Diameter (mm): 22.0Segment: MotorsportsExtended Length (IN): 42.50
