Description

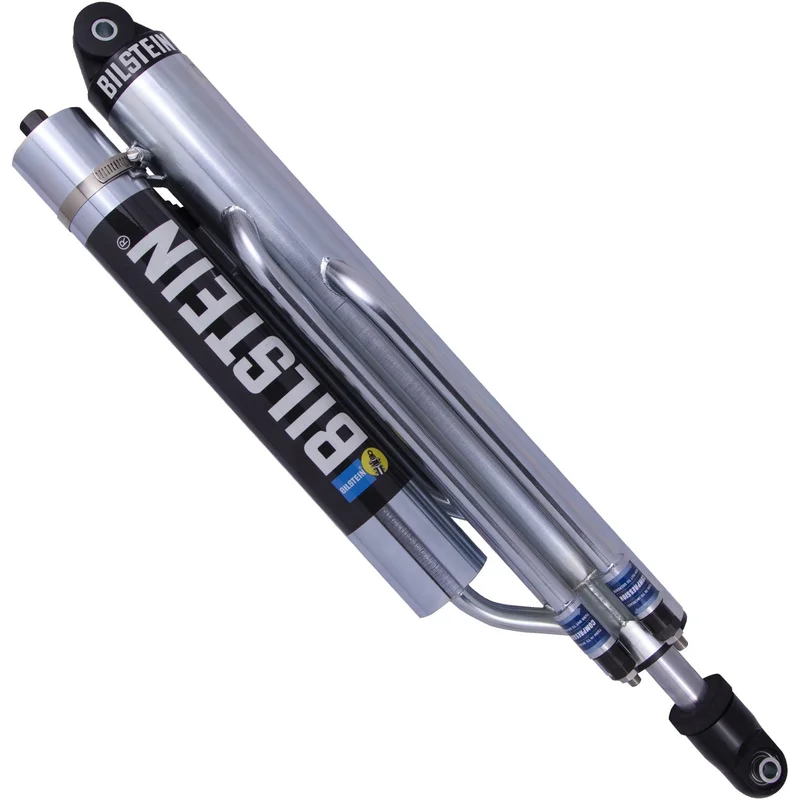

Bilstein 33-250687 – 70mm 3 Tube Bypass 16in Stroke Right M 9200 Shock Absorber
M 9200 (Bypass) – Suspension Shock Absorber
70mm Monotube Shock Absorber
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8″ to 18″
Mount Type: Eye-to-EyeOptional Reservoir Clamp: N/ASpring Seat Included: NoCollapsed Length (IN): 26.50Internal Design: MonotubeBody Design: 3-Tube Bypass Screw TopExtended Length (MM): 1079.5Upper Mount Type: Eye .5×1.5inPartType: Shocks / StrutsSeries: M 9200 (Bypass)Stroke/Travel Length (IN): 16.00Stroke/Travel Length (mm): 406.4Collapsed Length (MM): 673.1Rebound @0.52m/s: CustomReservoir: YesBoot Included: N/ACompression @0.52m/s: CustomFinish: Zinc PlatedShaft Diameter: 1-1/8 in.Piston Diameter: 70mmLower Mount Type: Eye .5×1.5inShaft Diameter (mm): 28.6Segment: MotorsportsExtended Length (IN): 42.50Position: Right
