Description

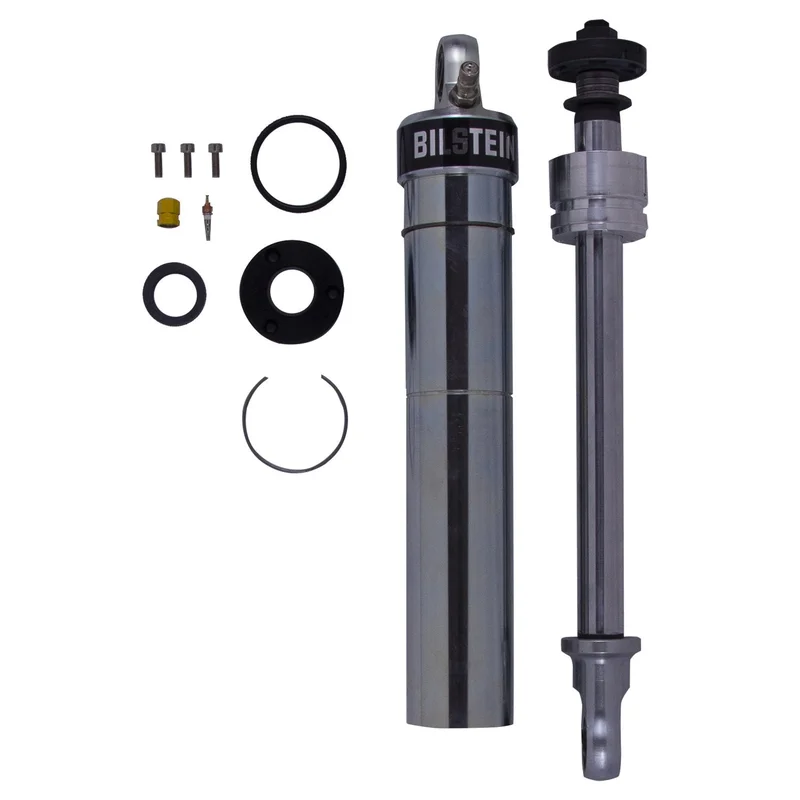

Bilstein 33-286877 – Shock Absorbers
EM46 Series – Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications. The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately). EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.
- Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations
- Smooth zinc plated OD body design allows for optional standard and coilover applications
- 22mm case hardened, centerless ground chrome shaft provides optimal displacement, brute tensile strength and resists chipping and scratching
Adjustable Damping: Non-AdjustableSpring Seat Included: NoCollapsed Length (IN): 14.15Body Design: Smooth Body Screw Top (Non-coilover)Extended Length (MM): 562.8Upper Mount Type: 1/2in HeimInternal Design: MonotubeStroke/Travel Length (IN): 8.00PartType: Shocks / StrutsSeries: EM46 SeriesBody Material: SteelStroke/Travel Length (mm): 203.2Collapsed Length (MM): 359.3Boot Included: NoFinish: Zinc PlatedShaft Diameter: 22mmPiston Diameter: 46mmLower Mount Type: 1/2in HeimSegment: MotorsportsSpring Hardware: B4-BOA-0000117Piston Type: DigressiveExtended Length (IN): 22.16
