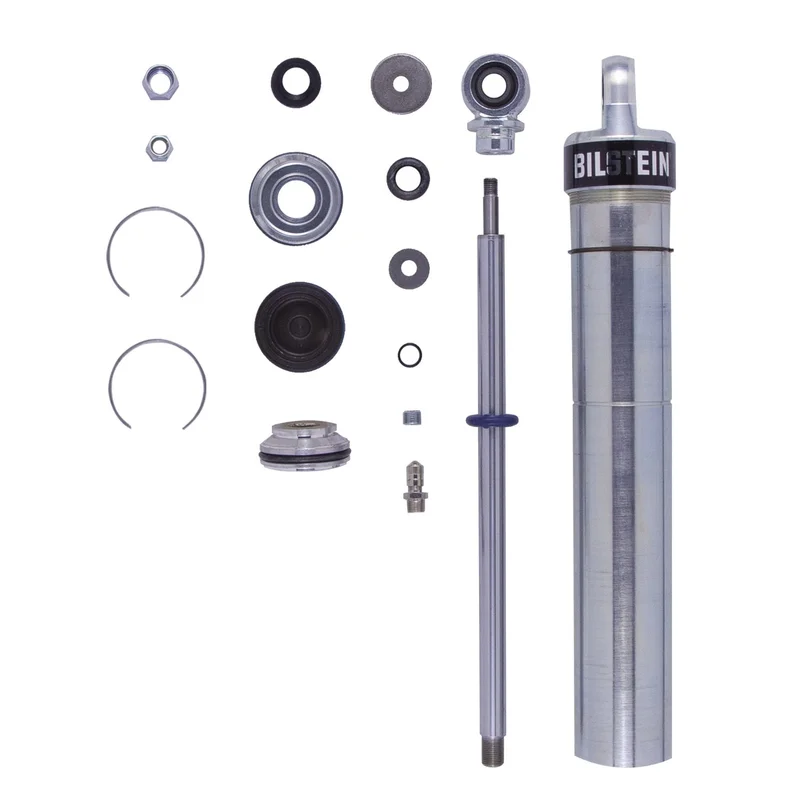

Bilstein 33-315560 – Shock Absorbers
Shock – SNS2 Series – Monotube – 15.12 in Compressed – 23.9 in Extended – 1.81 in OD – Steel – Zinc Plated – Each
46mm Monotube Shock Absorber
Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Boot Included: NoFinish: Zinc PlatedShaft Diameter: 14mmPiston Diameter: 46mmLower Mount Type: 1/2in HeimSegment: MotorsportsPiston Type: Sold SeparatelyExtended Length (IN): 23.90Spring Seat Included: NoAdjustable Damping: Non-AdjustableCollapsed Length (IN): 15.12Body Design: Smooth Body Screw Top (Non-coilover)Extended Length (MM): 607.0Internal Design: MonotubeUpper Mount Type: 1/2in HeimPartType: Shocks / StrutsStroke/Travel Length (IN): 8.78Series: SNS2 SeriesBody Material: SteelStroke/Travel Length (mm): 223.0Collapsed Length (MM): 384.0
