Bilstein 33-316680 – Shock Absorbers

Description

Bilstein 33-316680 – Shock Absorbers

Shock – SNS2 Series – Monotube – 13.35 in Compressed – 19.16 in Extended – 1.81 in OD – Steel – Zinc Plated – Each

46mm Monotube Shock Absorber

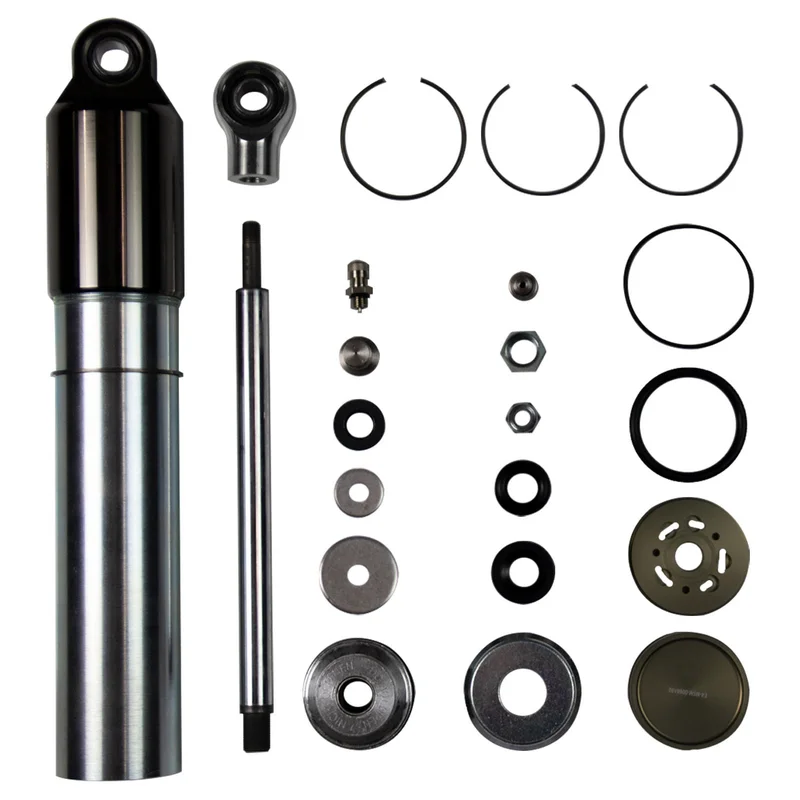

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

• Base Valve design delivers ultra low rod pressures and elminates gas preload
• Modular steel body design allows racer rebuildability
• Comes with IMCA-legal plug assembly installed (SNS2 Series)

Spring Seat Included: NoAdjustable Damping: Non-AdjustableCollapsed Length (IN): 13.35Extended Length (MM): 486.8Internal Design: MonotubeUpper Mount Type: 1/2in HeimPartType: Shocks / StrutsBody Design: Smooth Body Screw Top (Non-coilover)Stroke/Travel Length (IN): 5.82Series: SNS2 Series (BV)Body Material: SteelStroke/Travel Length (mm): 147.8Collapsed Length (MM): 339.0Boot Included: NoFinish: Zinc PlatedShaft Diameter: 14mmPiston Diameter: 46mmLower Mount Type: 1/2in HeimSegment: MotorsportsPiston Type: Sold SeparatelyExtended Length (IN): 19.16
