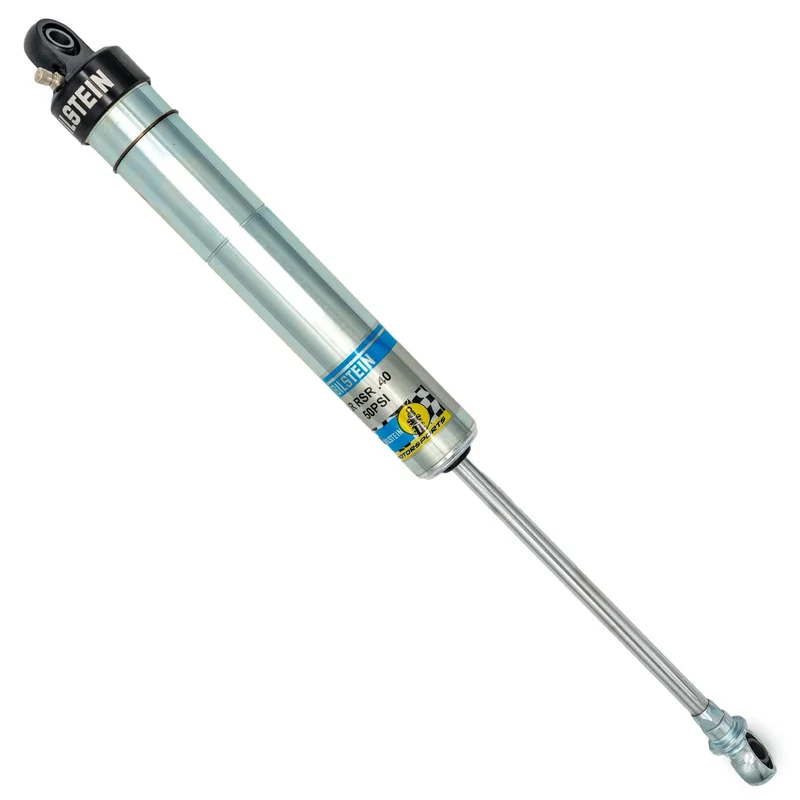

Bilstein 33-343600 – Shock Absorbers
SN2 Series – Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Segment: MotorsportsExtended Length (IN): 23.92Spring Seat Included: NoCollapsed Length (IN): 15.12Adjustable Damping: Non-AdjustableExtended Length (MM): 607.5Internal Design: MonotubeUpper Mount Type: 1/2in HeimPartType: Shocks / StrutsStroke/Travel Length (IN): 8.80Body Design: Threaded Body Screw Top (Coilover)Series: SN2 SeriesBody Material: SteelStroke/Travel Length (mm): 223.5Collapsed Length (MM): 384.0Boot Included: NoFinish: Zinc PlatedShaft Diameter: 14mmPiston Diameter: 46mmLower Mount Type: 1/2in HeimPiston Type: Linear
