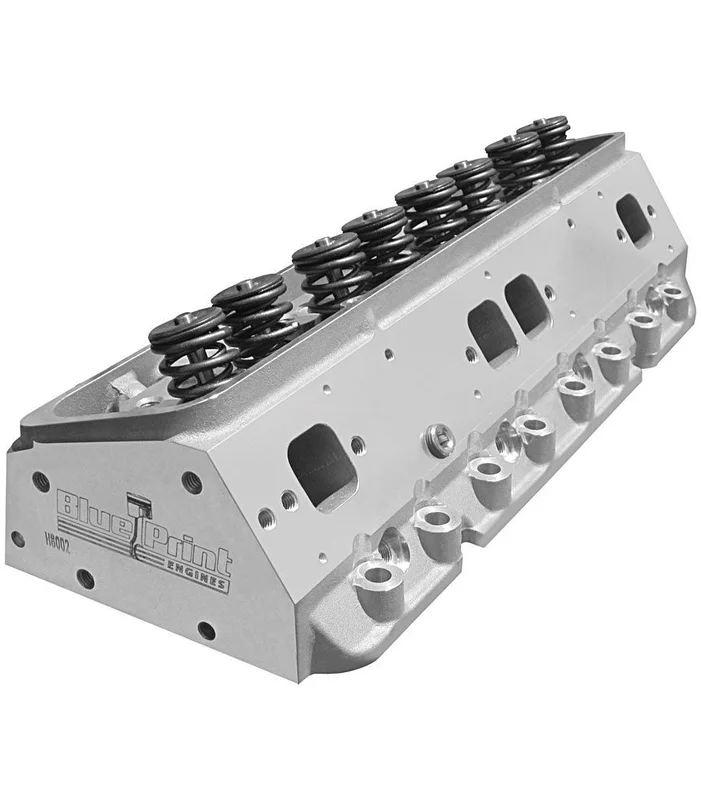

Blueprint Engines H8002K – SB Chevy Aluminum Cylinder Head – 195cc – Assembled (Sold as a Pair)

Description

Blueprint Engines H8002K – SB Chevy Aluminum Cylinder Head – 195cc – Assembled (Sold as a Pair)

Cylinder Head – Muscle Series – Assembled – 2.020 / 1.600 in Valves – 195 cc Intake – 64 cc Chamber – 1.437 in Spring – Straight Plug – Aluminum – Small Block Chevy – Pair

SB Chevy Aluminum Cylinder Head 195ccAssembled Sold as a Pair

• SB Chevy Aluminum Cylinder Head 195ccAssembled Sold as a Pair

Manufacturer’s Part Number:: H8002KCombustion Chamber Volume (cc):: 64ccIntake Runner Volume (cc):: 195ccExhaust Runner Volume (cc):: 75ccCylinder Head Style:: AssembledCylinder Head Material:: AluminumIntake Port Shape:: RectangularIntake Valve Diameter (in.):: 2.020 in.CNC-Machined Combustion Chamber:: NoCNC-Machined Intake Runner:: NoIntake Port Location:: StandardExhaust Port Shape:: SquareExhaust Port Location:: Raised .500Spark Plug Style:: StraightIntake Valves Included:: YesExhaust Valves Included:: YesExhaust Valve Diameter (in.):: 1.600 in.Valve Springs Included:: YesMaximum Valve Lift (in.):: 0.575 in.Camshaft Style:: Hydraulic RollerOutside Diameter of Outer Spring (in.):: 1.437 in.Damper Spring Included:: YesNumber of Springs Per Valve:: DualRetainers Included:: YesRetainer Material:: Chromoly steelLocks Included:: YesLock Style:: 7 degreeValve Stem Seals Included:: YesValve Stem Seal Style:: Viton® FluoroelastomerRocker Arm Studs Included:: YesRocker Arm Nut Thread Size:: 7/16 in. x 20Rocker Arms Included:: NoRocker Arm Nuts Included:: NoGuide plates Included:: YesGuide plate Pushrod Size:: 5/16 in.Valve Cover Mounting Style:: Perimeter boltAccessory Bolt Holes Drilled:: Yes, 3/8 -16 in.Intake Valve Angle:: 23Exhaust Valve Angle:: 23Valve Guides Included:: YesValve Guide Material:: Manganese bronzeValve Seats Machined:: YesValve Seat Machine Style:: 3-angleValve Seat Material:: Chrome nickelCylinder Head Color:: NaturalSteam Holes Drilled:: NoOiling Style:: Through pushrodMachined for O-Ring:: NoHeat Crossover:: NoQuantity: Sold as a pair.Notes:: Uses 3/4 in. reach gasket seat spark plug. Heads are drilled to accept both early style (12 bolt) and late style (8 bolt/Vortec) intake manifolds.
