Description

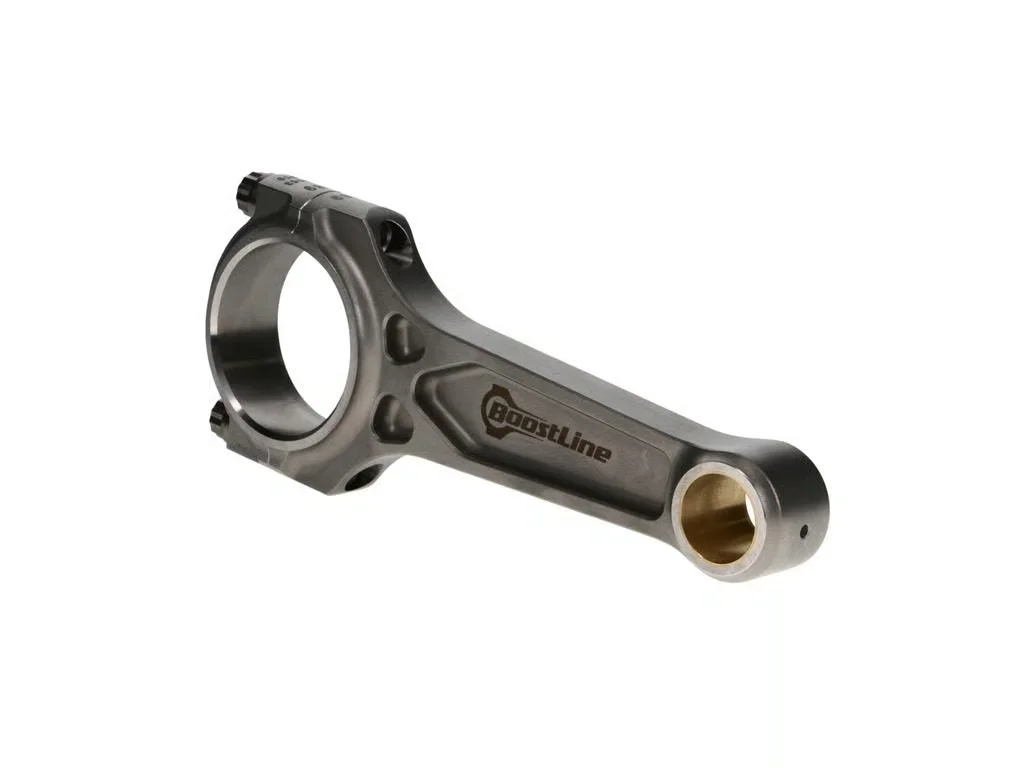

Boostline MI5657-905S+ – Mitsubishi Evo X 4B11T 143.7mm ARP 625+ – Connecting Rod Single
Connecting Rod, Mitsu Evo X 4B11T, 143.70 mm Length, ARP 625+, Set of 1
BoostLine Mitsubishi 4B11T Connecting Rod, 144.00 mm Length, 23.00 mm Pin, 52.00 mm Journal, 3/8 in. ARP 625+ Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 1
BoostLine connecting rods are designed and built for the stressful demands of?high-powered, forced induction and nitrous Mitsu Evo X 4B11T engines. Proven in the lab and on the track in 250 HP per-cylinder applications, BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods? big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card provided with every set ofBoostLine rods. BoostLine connecting rods are the complete package for everything from powerful marine engines to all-out race car.s
-
- Purpose-Built For Boost High Boost and Nitrous Mitsubishi Evo X 4B11T Applications
- Forged From Ultra-Strong 4340 Steel
- Patented Three-Pocket Design
- Capable of 1000+ HP
- 3/8 x 1.600 in. ARP 625+ Custom Aged Fasteners
- High Quality APMCO Bronze Pin Bushing
- 26 Point Detailed CMM Inspection Report Included
Add-On: BT61601-625Big End Bore: 2.1655Big End Width: 21.87Bolt Diameter: 3/8Bolt Part Number: BT61601-625Category Hierarchy: Individual Connecting Rods>Sport CompactConnecting Rod Journal Diameter: 2.1655Connecting Rod Material: Forged 4340 SteelConnecting Rod Type: I-BeamEmissions Code: 3Engine – Web: 4B11TEngine Type: ICEEngine: 4B11TIndustry: AutomotiveJournal Size: 52.00Length Center Bore To Center Bore: 144.00Make – Web: MITSUBISHIMake: MITSUBISHIMaterial: Forged 4340 SteelOut of Stock Message: Estimated Ship Date 3-4 WeeksProduct Market: Sport CompactProduct Type: Engine Connecting RodRod Type: I-BeamSmall End Width: 0.782Title – Web: Mitsubishi Evo X 4B11T Connecting Rod 143.7 mm Length – ARP 625+ BoltsWeight: 622Wrist Pin Diameter: 23.00Wrist Pin Journal Bushing Width: 0.782
