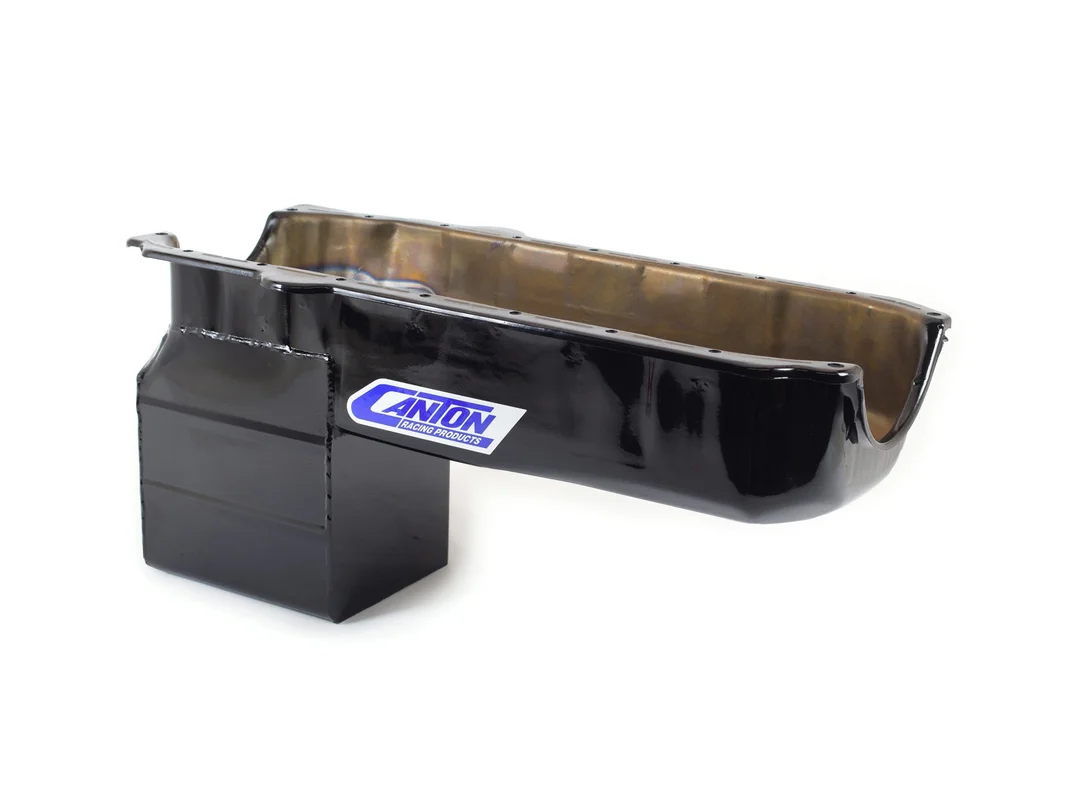

Canton 16-100 – Oil Pan Small Block Chevy S10 Truck Conversion Black Powder Coat
Engine Oil Pan – Truck – Rear Sump – 7 qt – 10 in Deep – Steel – Black Powder Coat – 2-Piece Seal – S-10 Engine Swap – Small Block Chevy – Each
Canton 16-100 Oil Pan Small Block Chevy S10 Truck Conversion Black Powder Coat
This SBC S-10 V-8 conversion oil pan is for pre-’86 blocks. It is designed to install a Chevy small block into the popular S-10 / S-15 pickup & Blazer 4×4 chassis when used in conjunction with Hooker Mount #12610 and Hooker Headers #2839. The 10″ deep sump gives a 7 quart system capacity. This pan requires a M210S or M211S pickup.
- Designed for 5.0 Coyote Blocks
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2″ NPT Temperature Bung
- 20mm Bung for low Oil Warning Sender
- Made In USA
- Tig Welded
Baffled: YesHardware Included: NoSump Width: 7.75 inchesSump Depth: 10 inchesStoke: 3.875 inchesRecommended Accessory 3: 88-100 – SBC Pre ?85 Oil Pan GasketRecommended Accessory 2: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. FittingRecommended Accessory 1: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. FittingPickup Included: NoMaterial: SteelKicked Out: YesGasket or Seal Included: NoCapacity: 7 Quart System CapacityFinish: Black PowdercoatFeature 6: Magnetic Drain PlugFeature 5: Provision For Our Pan Mounted DipstickFeature 4: Built In Screen Windage TrayFeature 3: Slosh BaffleFeature 2: Crank ScraperFeature 1: 7 qt System CapacityDrain Plug Included: YesDipstick Port: YesCrank Scraper Included: YesWindage Tray Included: Yes
