Centerforce 413234818 – DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 55.60 lbs, 164 Tooth Gear, 8 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 23M-Spline, Fits Ford s Mustang 5.0L

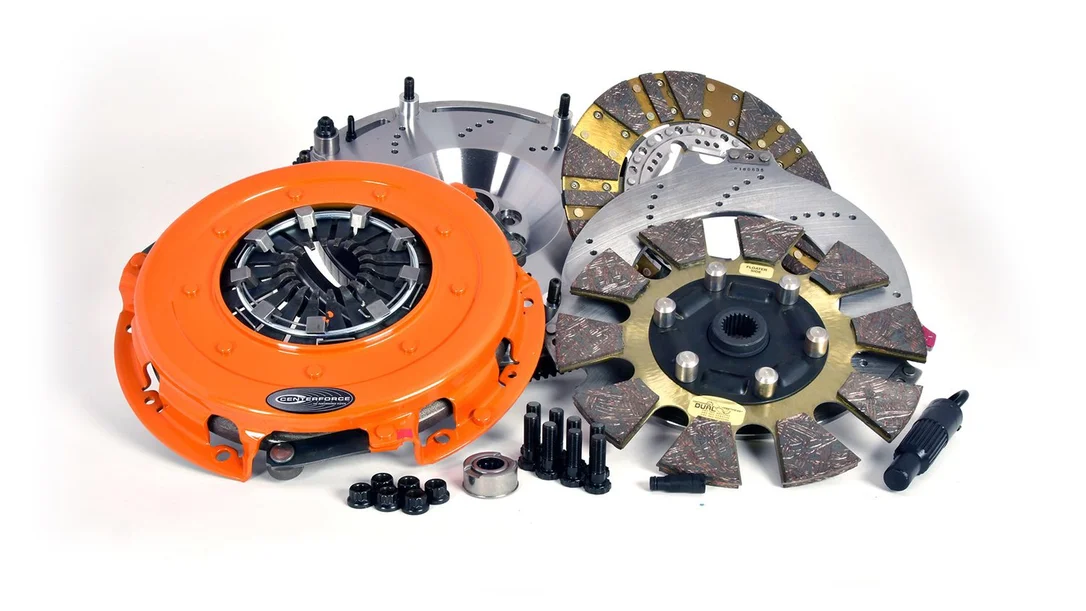

DYAD(R) DS 10.4, Clutch and Flywheel Kit
The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
The Centerforce(R) DYAD DS 10.4 in. twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM’s. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
- 10.4″ Diameter
- 264.2mm Diameter
- 1″ x 23M Spline Input Shaft
- Holds Up To 1300 ft/lbs of Torque
- Weighs 55.60 lbs
- 164 Tooth R.Gear, 8 Bolt Crank, and
- Centrifugally Assisted
- Ball Bearing Design
- Patented Multi-Disc Design
Out of Package Weight: 55.60Torque Capacity: 1300Tooth Quantity: 164Disc Type Sprung Solid: SprungDisc Quantity: 2Input Shaft Diameter: 1Counterweight Assist: YESInput Spline Quantity: 23MRing Gear O.D.: 14.236Clutch Disc Diameter: 10.4Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic FrictionCrankshaft Bolt Hole Quantity: 8Flywheel Crank Bolt Size: M10 x 1.0 x 32Installed Height: 4.150Pilot Bushing Included: YesAlignment Tool Included: YesMounting Hardware Included: YesMade In The USA: Assembled
