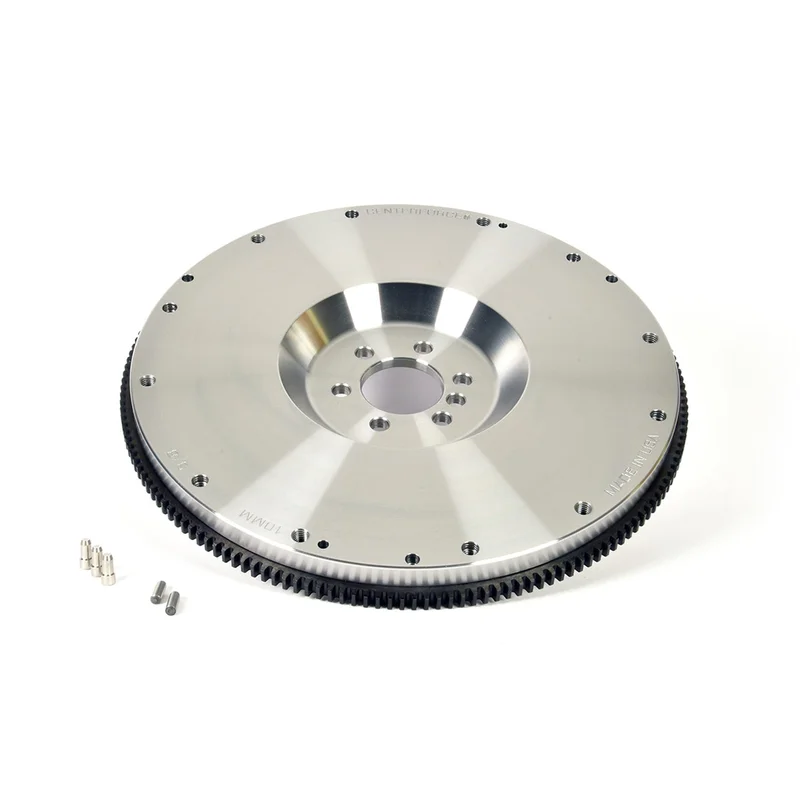

Centerforce 704142 – ? Flywheels, Performance Steel, 30.10 lbs, 168 Tooth Gear, 6 Bolt Crank, Fits Chevrolet Crate Engines & Swaps 8 Cyl

Description

Centerforce 704142 – ? Flywheels, Performance Steel, 30.10 lbs, 168 Tooth Gear, 6 Bolt Crank, Fits Chevrolet Crate Engines & Swaps 8 Cyl

Centerforce(R) Flywheels, Steel

Centerforce(R) SFI-certified steel flywheels are CNC-machined from billet steel for precise, no-hassle, bolt-in installation.See extenedfor application-specific information.

This Centerforce billet steel flywheel solves a variety of problems associated with LS swaps utilizing earlier (non-LS) transmissions. Most LS engines have a crank offset that is 0.400 in. shallower than earlier generation Chevy small blocks. This presents a problem for those wanting to use a later LS engine with a manual transmission that was originally attached to a non-LS application, such as a Muncie 4-speed. This different crank offset causes internal bellhousing geometry problems with throwout bearing travel and clutch engagement when attempting to use an off-the-shelf LS flywheel with an earlier transmission. This flywheel bolts to a standard LS 6-bolt crankshaft but is machined with an extra 0.400 in. of thickness, compensating for the LS crank offset and placing the flywheel face and clutch assembly in the proper position to work with earlier transmissions.Centerforce(R) steel flywheels are manufactured from high quality billet steel and match closely to the original equipment flywheel weight. Billet steel flywheels are available for popular import and domestic vehicles, including trucks. Centerforce steel flywheels are CAD/CAM-designed and CNC-machined from billet steel for precise, no-hassle, bolt-in installation. Centerforce billet steel flywheels are SFI-certified, so you know that you can count on them, on the street and on the track.

• Weighs 30.10 lbs
• 168 Tooth R.Gear, 6 Bolt Crank, and
• SFI Spec 1.1 Approved
• High Quality Billet Steel
• Cad/cam Designed And Cnc Machined
• Precision Balanced
• No-hassle Bolt-in
• Domestic And Import Applications

Out of Package Weight: 30.10Tooth Quantity: 168SFI 1.1 Approved: YMaterial: Billet SteelRing Gear O.D.: 14.105Clutch Bolt Pattern: 3,14Crankshaft Bolt Hole Quantity: 6Flywheel Deck Height: 1.215Made In The USA: Yes
