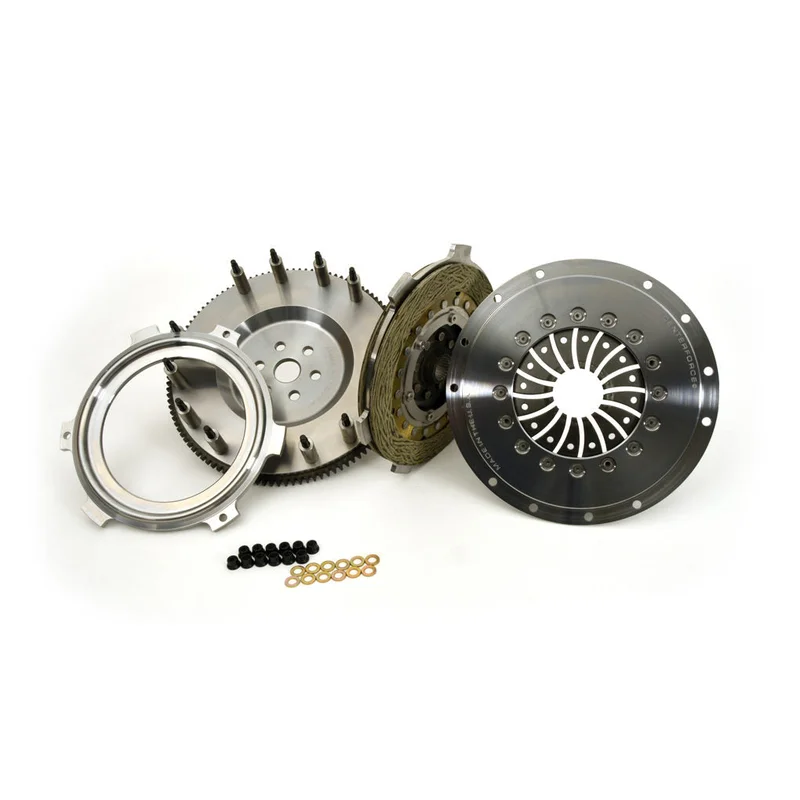

Centerforce 815231837 – DYAD ? DS 8.75, Multi-Disc Clutch and Flywheel Kit, 28.7 lbs, 6 Bolt Crank, 300-600 ft/lbs Capacity, 8.75in Dia., 23-Spline, Fits Ford Focus RS 2.3L
DYAD(R) DS 8.75, Clutch and Flywheel Kit
The Centerforce(R) DYAD(R) DS (Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 300 to 600 ft /lbs.
The Centerforce(R) DYAD DS 8.75 in. twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM’s. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
- 8.75″ Diameter
- 222.3mm Diameter
- 1″ x 23 Spline Input Shaft
- Holds Up To 300-600 ft/lbs of Torque
- Weighs 28.7 lbs
- Solid Hub Disc with Organic/Kevlar Material
- 6 Bolt Crank, and
- Simple Install
- Excellent Driver Control
Out of Package Weight: 28.7Torque Capacity: 300-600Disc Type Sprung Solid: SolidInput Shaft Diameter: 1Counterweight Assist: NoInput Spline Quantity: 23Disc Material: Organic/KevlarDisc Type: Full faceClutch Disc Diameter: 8.75Material: OrganicCrankshaft Bolt Hole Quantity: 6Mounting Hardware Included: YesMade In The USA: Assembled
