Description

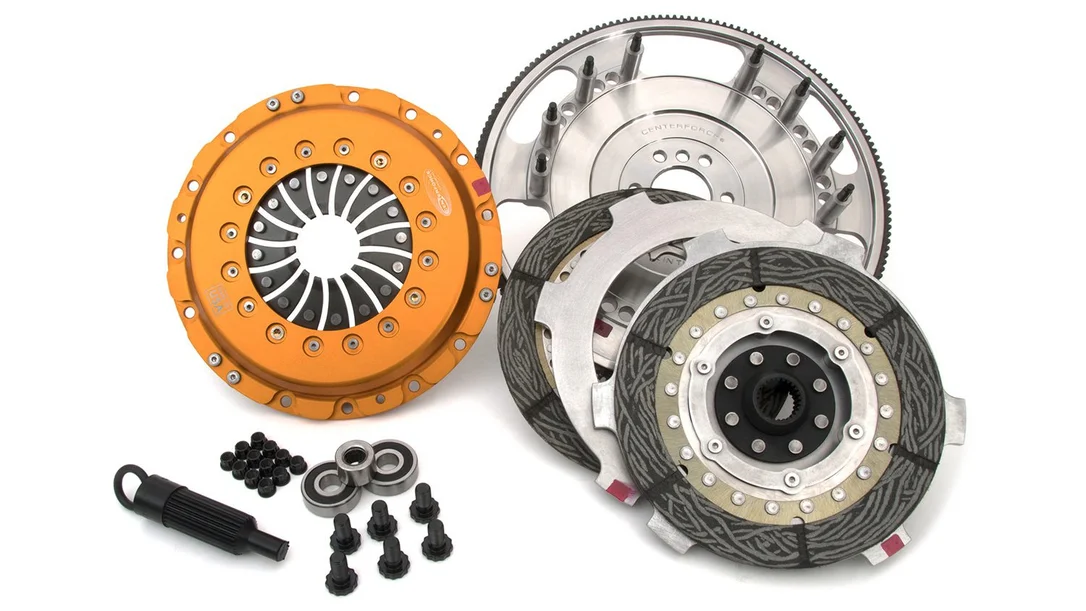

Centerforce 836264042 – TRIAD ? DS, Extreme Multi-Disc Clutch and Flywheel Kit, 32.90 lbs, 168 Tooth Gear, 6 Bolt Crank, 900 ft/lbs Capacity, 8.750in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl
TRIAD(R) DS, Clutch and Flywheel Kit
The Centerforce(R) TRIAD DS (Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1100 ft/lbs.
The Centerforce(R) TRIAD DS 8.75 in. triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM’s. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. TRIAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
- 8.750″ Diameter
- 222.3mm Diameter
- 1-1/8″ x 26 Spline Input Shaft
- Holds Up To 900 ft/lbs of Torque
- Weighs 32.90 lbs
- Solid Hub Disc with Sintered Metallic Material
- 168 Tooth R.Gear, 6 Bolt Crank, and
- 8.75″ Dia. For Track Use
Ring Gear O.D.: 14.105Clutch Disc Diameter: 8.750Material: Cast Iron Pressure Plate / Full Face Metalic FrictionCrankshaft Bolt Hole Quantity: 6Flywheel Crank Bolt Size: MM11 x 1.50 x 23Pilot Bushing Included: YesAlignment Tool Included: YesMounting Hardware Included: YesMade In The USA: AssembledOut of Package Weight: 32.90Torque Capacity: 900Tooth Quantity: 168Disc Type Sprung Solid: SolidInput Shaft Diameter: 1-1/8Counterweight Assist: NoInput Spline Quantity: 26Disc Material: Sintered MetallicDisc Type: Full face
