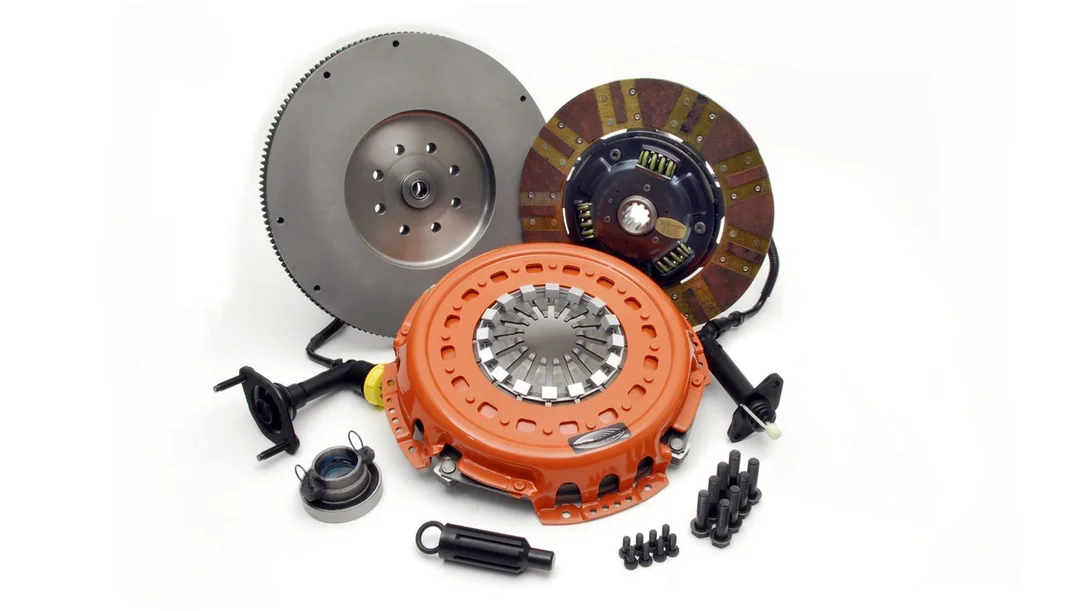

Centerforce DF143253 Transmission Clutch and Flywheel Kit

Description

Centerforce DF143253 Transmission Clutch and Flywheel Kit

Dual Friction(R), Clutch Pressure Plate, Disc, and Flywheel Set

The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides.The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

• 13″ Diameter
• 330.2mm Diameter
• 1-3/8″ x 10 Spline Input Shaft
• Holds Up To 900 ft/lbs of Torque
• Sprung Hub Disc with Organic/Carbon Composite Material
• 152 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance

Torque Capacity: 900Tooth Quantity: 152Disc Type Sprung Solid: SprungDisc Quantity: 1Input Shaft Diameter: 1-3/8Counterweight Assist: YESInput Spline Quantity: 10Disc Material: Organic/Carbon compositeDisc Type: Segmented faceClutch Bolt Pattern: 23Ring Gear O.D.: 15.625Clutch Disc Diameter: 13Material: Cast Iron Flywheel / Cast Iron Pressure Plate / Segmented Organic FrictionCrankshaft Bolt Hole Quantity: 8Flywheel Counter Balance Weight: 0Flywheel Crank Bolt Size: 12Release Bearing Included: YesPilot Bushing Included: YesAlignment Tool Included: YesMounting Hardware Included: YesMade In The USA: Assembled
