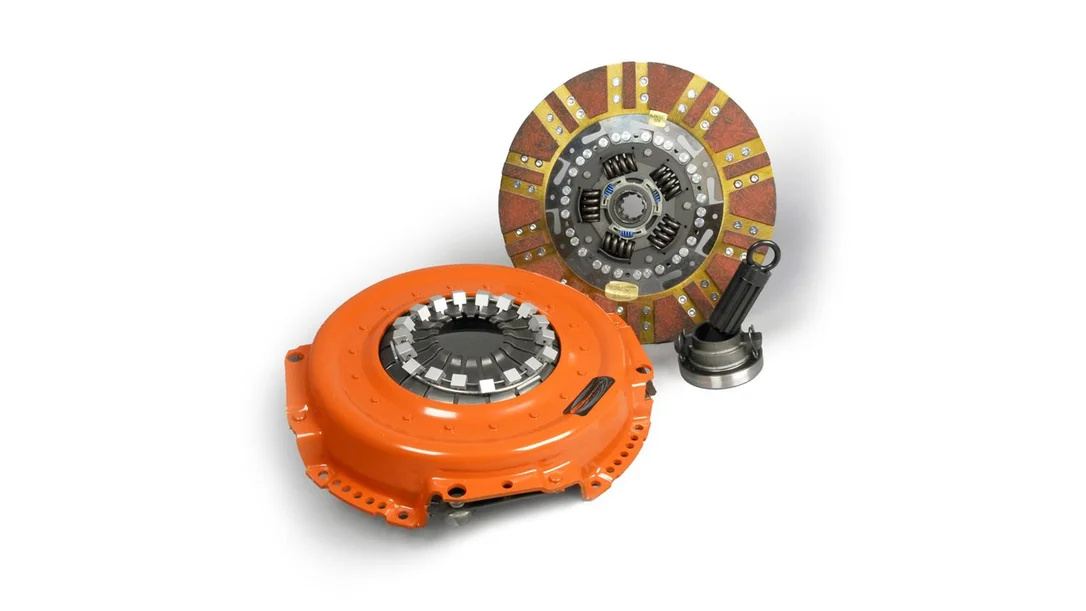

Centerforce DF489989 – Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 825 ft/lbs Capacity, 12.250in Dia., 10-Spline, Fits Dodge Ram 2500 and Ram 3500 5.9L/8.0L

Description

Centerforce DF489989 – Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 825 ft/lbs Capacity, 12.250in Dia., 10-Spline, Fits Dodge Ram 2500 and Ram 3500 5.9L/8.0L

Clutch Kit – Dual Friction – Single Disc – 12.25 in Diameter – 1-1/4 in x 10 Spline – Sprung Hub – Organic / Carbon – Mopar – Kit

The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides.The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

• 12.000 in. Diameter
• 1.125 in. x 26 Spline Input Shaft
• 304.8 mm Diameter
• Centrifugally Assisted
• Dual Friction[R] Design
• Holds Up To 700 ft/lbs Of Torque
• Weighs 59.65 lbs
• Sprung Hub Disc with Organic/Carbon Composite Material
• 168 Tooth R.Gear/6 Bolt Crank/0 oz Counter Balance

Torque Capacity: 825Clutch Disc Diameter: 12.250Input Shaft Diameter: 1-1/4Disc Type Sprung Solid: SprungInput Spline Quantity: 10Disc Material: Organic/Carbon compositeMaterial: Cast Iron Pressure Plate / Segmented Organic FrictionCounterweight Assist: YESDisc Type: Segmented faceClutch Bolt Pattern: 22Release Bearing Included: YesAlignment Tool Included: YesMade In The USA: Assembled
