Centerforce DF532009 – Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 283 ft/lbs Capacity, 9.4375in Dia., 22-Spline, Fits Mazda B2200 and RX-7 2/4 Cyl
Dual Friction(R), Clutch Pressure Plate and Disc Set
The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

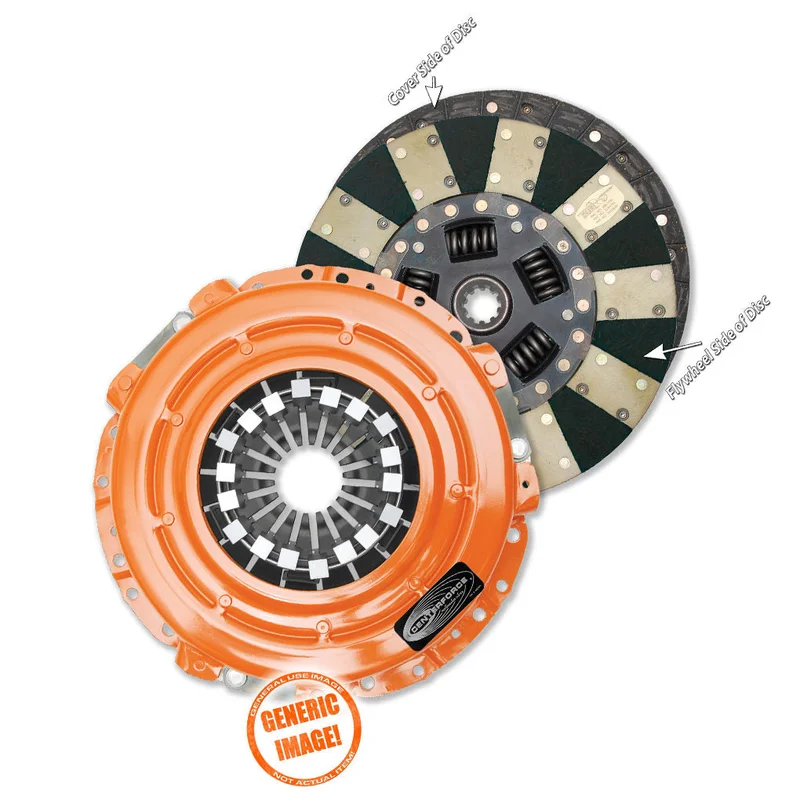

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides.The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
- 9.4375″ Diameter
- 225mm Diameter
- 15/16″ x 22 Spline Input Shaft
- Holds Up To 283 ft/lbs of Torque
- Sprung Hub Disc with Organic/Carbon Composite Material
- Centrifugally Assisted
- Dual Friction(R) Design
Torque Capacity: 283Clutch Disc Diameter: 9.4375Input Shaft Diameter: 15/16Disc Type Sprung Solid: SprungInput Spline Quantity: 22Disc Material: Organic/Carbon compositeMaterial: Cast Iron Pressure Plate / Full Face and Segmented Organic FrictionCounterweight Assist: YESDisc Type: Full face/Segmented faceClutch Bolt Pattern: 10Flywheel Step: -0.630Alignment Tool Included: YesMade In The USA: Assembled
