Centerforce DF997997 Transmission Clutch and Flywheel Kit

Description

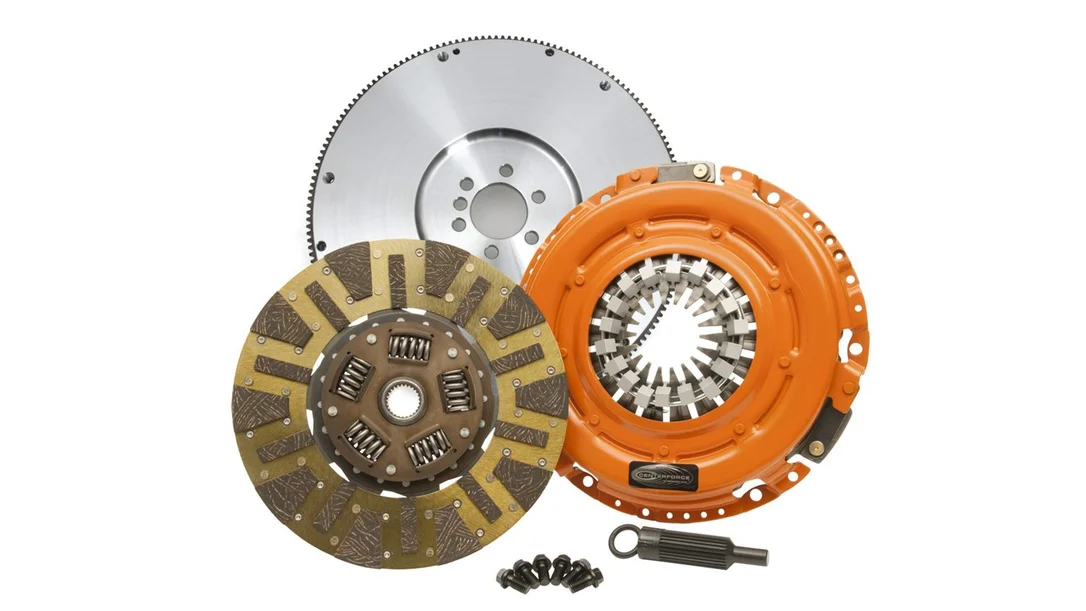

Centerforce DF997997 Transmission Clutch and Flywheel Kit

Clutch Kit – Dual Friction – Single Disc – 12 in Diameter – 1-1/8 in x 10 Spline – Sprung Hub – Organic / Carbon – 6.0 L – GM LS-Series – Kit

The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides.The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

• 12″ Diameter
• 304.8mm Diameter
• 1-1/8″ x 10 Spline Input Shaft
• Holds Up To 700 ft/lbs of Torque
• Weighs 53.15 lbs
• Sprung Hub Disc with Organic/Carbon Composite Material
• 168 Tooth R.Gear, 6 Bolt Crank, and 0 oz Counter Balance

Out of Package Weight: 53.15Torque Capacity: 700Tooth Quantity: 168Disc Type Sprung Solid: SprungInput Shaft Diameter: 1-1/8Counterweight Assist: YESInput Spline Quantity: 10Disc Material: Organic/Carbon compositeDisc Type: Segmented faceClutch Bolt Pattern: 14Ring Gear O.D.: 14.105Clutch Disc Diameter: 12Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic FrictionCrankshaft Bolt Hole Quantity: 6Flywheel Crank Flange Register: 2.068Flywheel Counter Balance Weight: 0Flywheel Crank Bolt Size: MM11 x 1.50 x 23Installed Height: 2.895Alignment Tool Included: YesMounting Hardware Included: YesMade In The USA: Assembled
